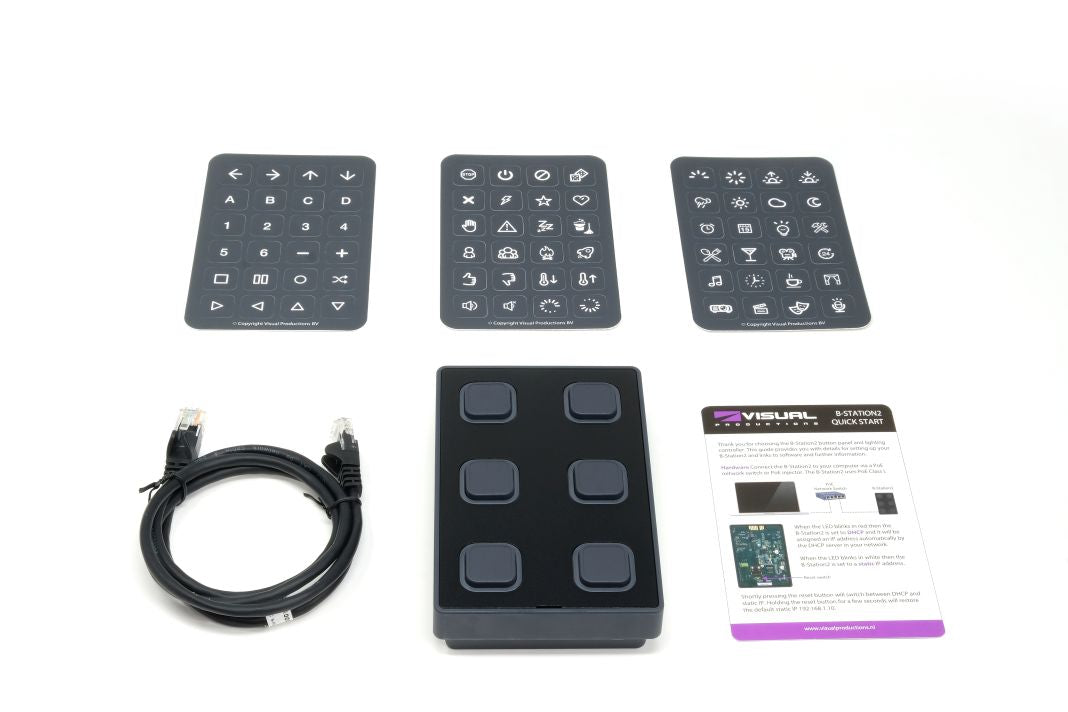

Visual Productions B-Station2
£435.00

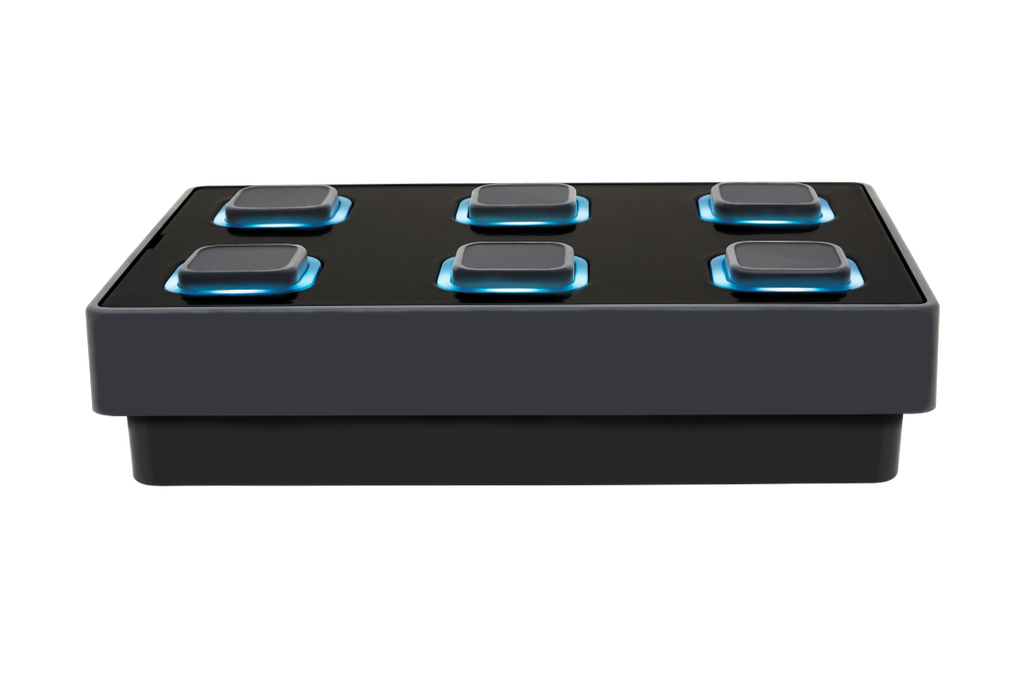

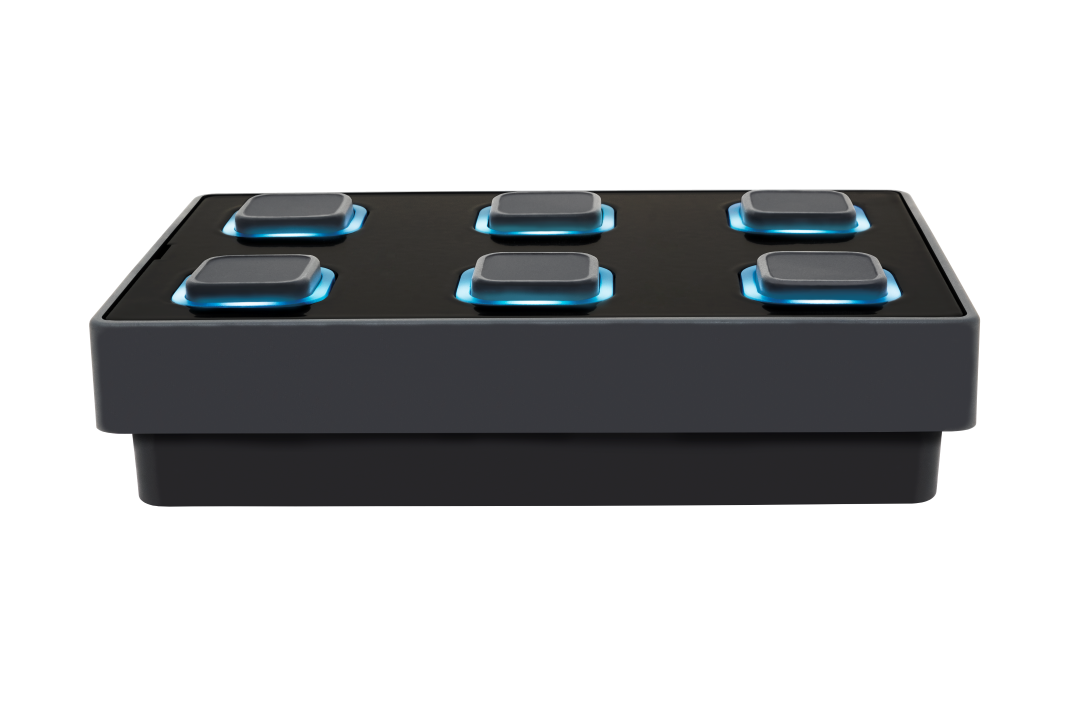

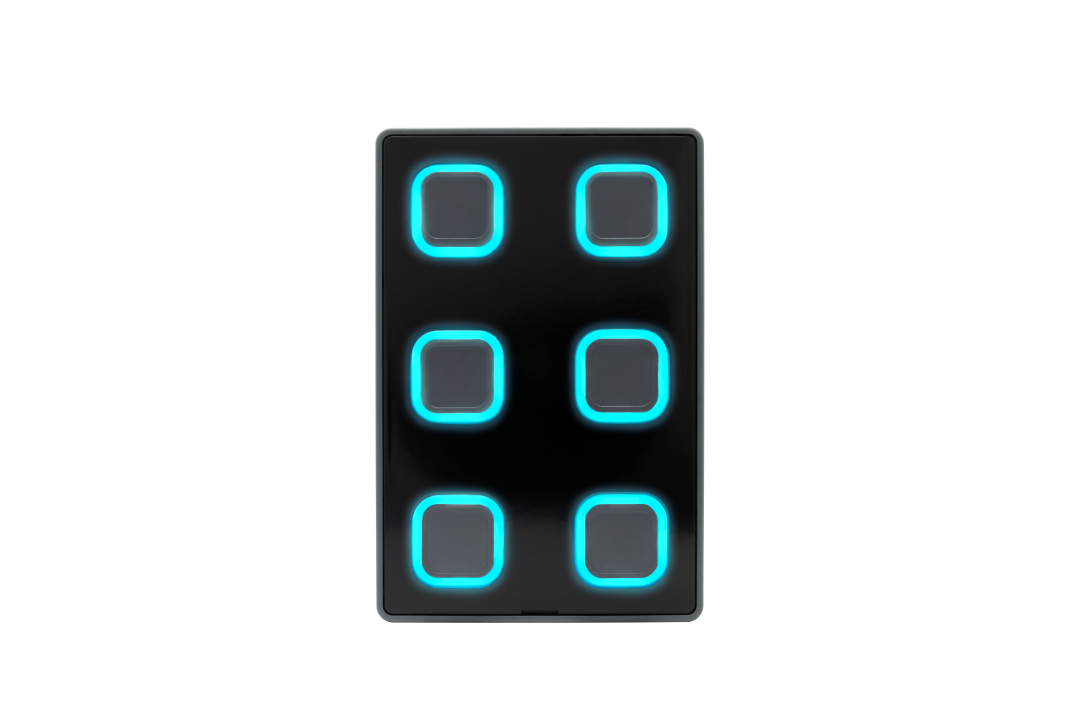

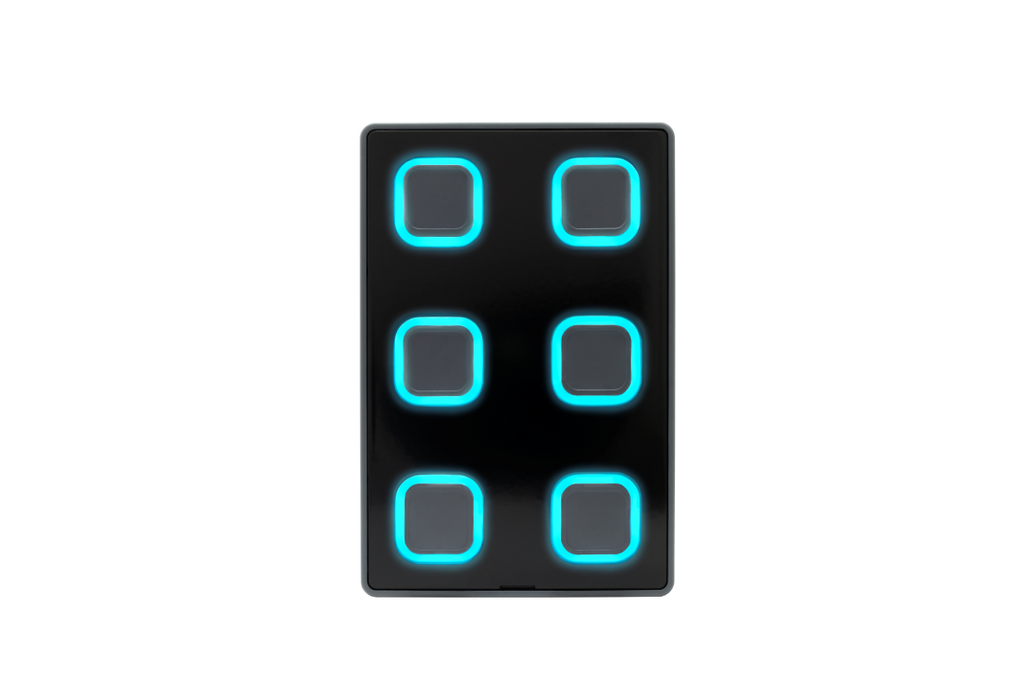

Wall-mount button panel and DMX lighting controller combined
Designed to offer a user-interface to your lighting project, the B-Station2 is a wall-mount panel with 6 push-buttons. The buttons can be configured to send out a multitude of control messages via DMX, UDP, OSC, Art-Net or sACN. The B-Station2 is the ideal device for triggering your lighting scenes stored in a CueCore2 or LPU-2 controller.

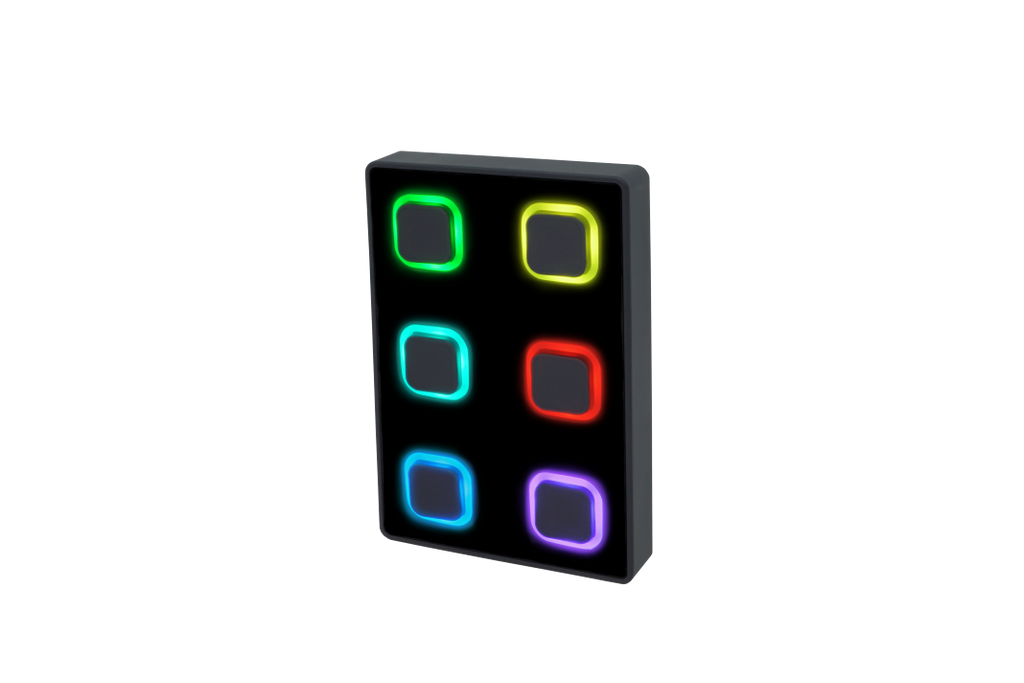

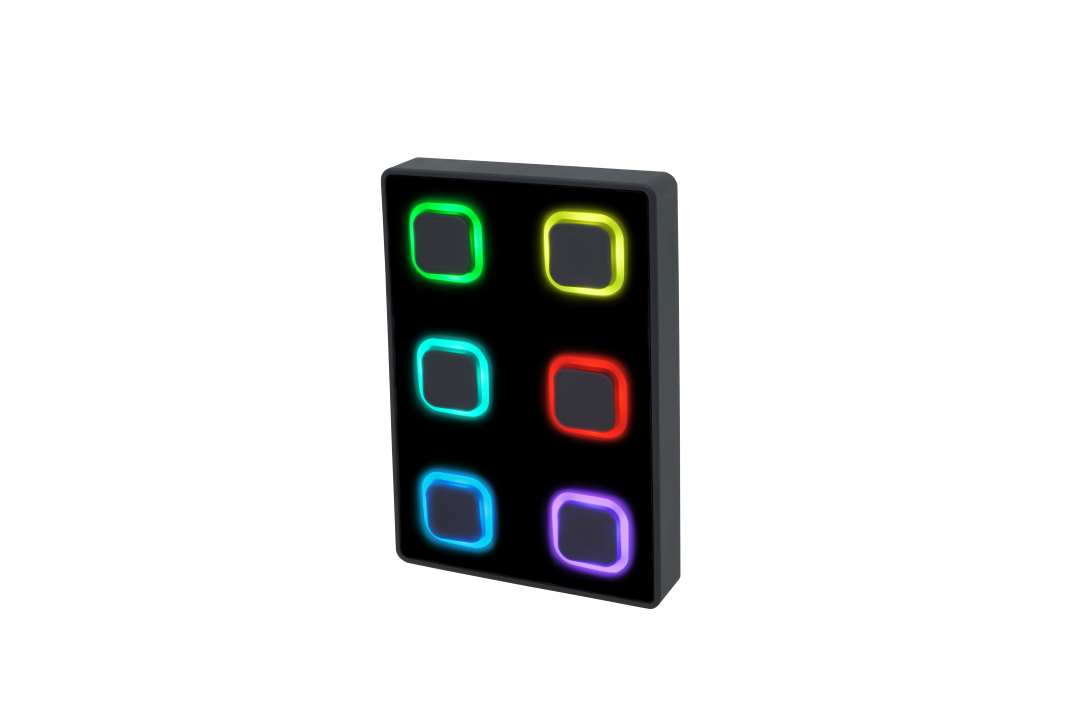

The push-buttons are fitted with RGB LED rings. The LEDs can be freely programmed to create an intuitive user experience, for example by indicating which button or lighting scene is active, or representing the real-time colour of the fixture.
Messages from protocols such as DMX, UDP, OSC, Art-Net or sACN can be used to control the feedback to the LED rings.
The push-buttons are fitted with RGB LED rings. The LEDs can be freely programmed to create an intuitive user experience, for example by indicating which button or lighting scene is active, or representing the real-time colour of the fixture.
Messages from protocols such as DMX, UDP, OSC, Art-Net or sACN can be used to control the feedback to the LED rings.
Delivery Lead Time: 5-10 working days approx.
Specifications
| 6 Push Buttons |
|
RGB LED rings |
|
Web-interface for programming |
|
DMX-512 (ANSI E1.11) opto-isolated |
|
RDM (ANSI E1.20) |
|
Art-Net output and input |
|
sACN output and input |
|
UDP output and input |
|
OSC output and input |
|
TCP Input |
|
Compatible with Kiosc |
|
Power over Ethernet (class I) |
|
32 fixtures in stand-alone |
|
6 playbacks/zones in stand-alone |
|
FX Generator |
