Visual Productions IoCore2
£625.00
Skip to product information
In stock
Visual Productions IoCore2
£625.00
GPIO interface with with RS-232 & DMX

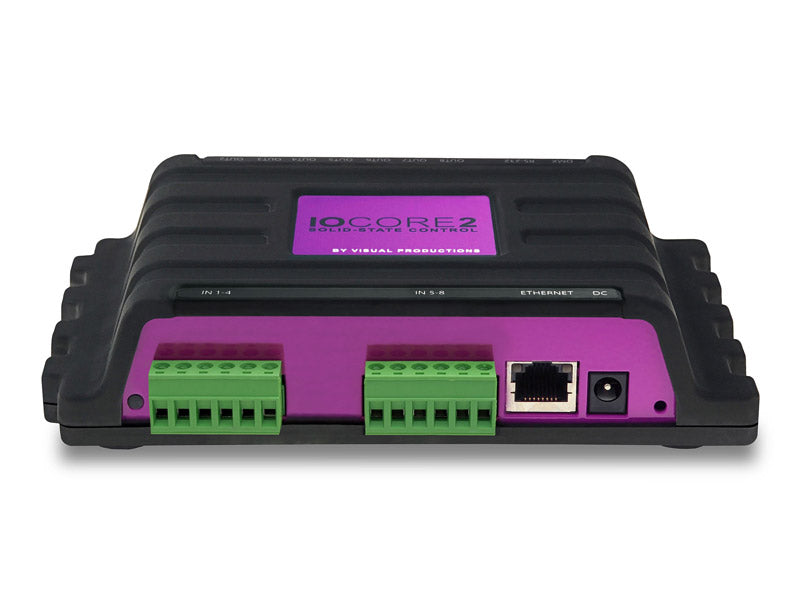

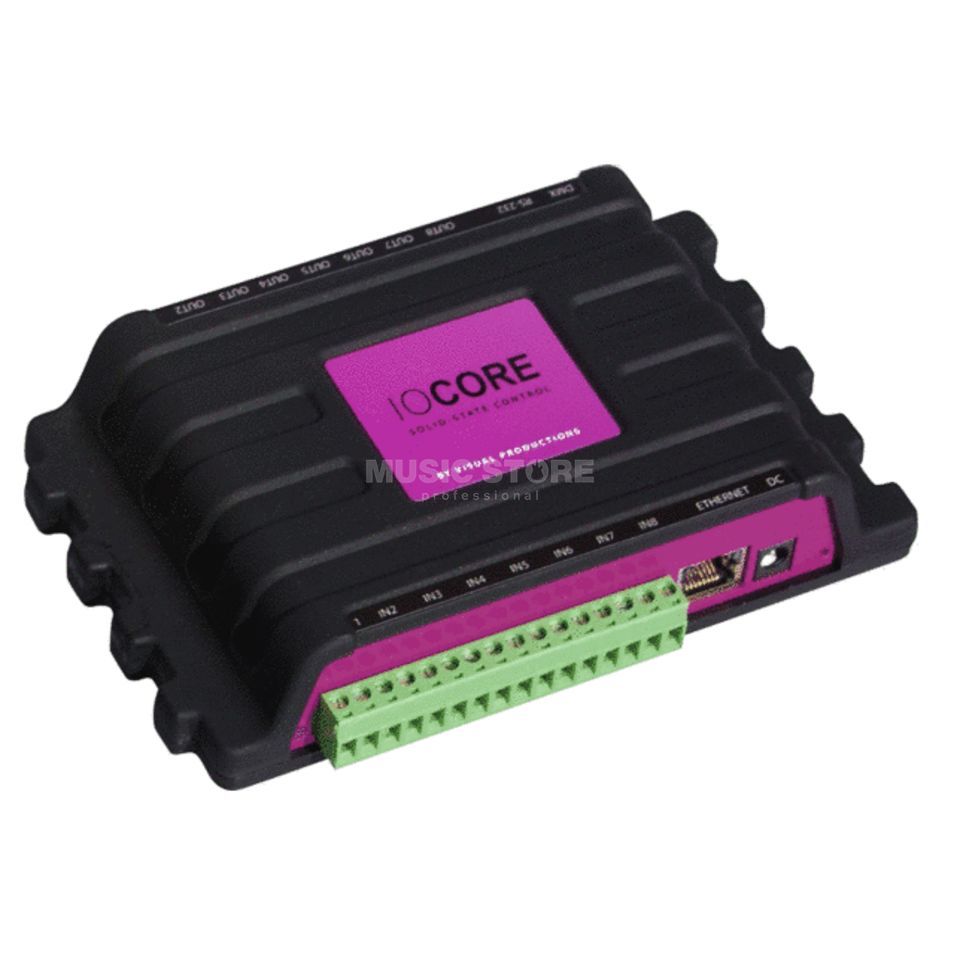

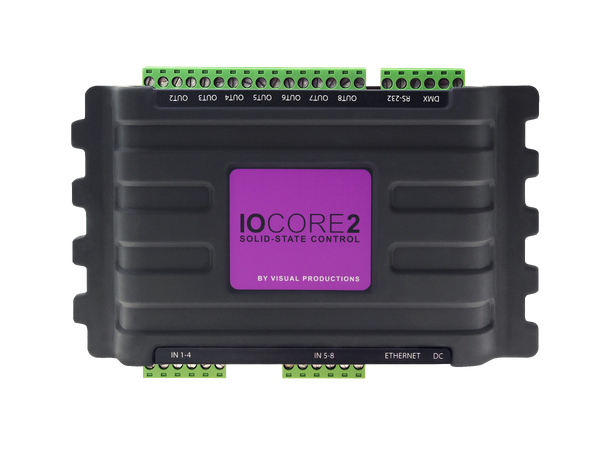

The IoCore2 is a network-based solid-state interface for GPIO signals. It features eight GPI ports that can be configured as digital contact-closures or analog 0-10V level inputs. The IoCore2 also has eight GPO ports that are fitted with potential free relay switches. Furthermore, it has a RS-232 port, a bi-directional DMX-512 port and it supports many Ethernet based protocols.
Delivery Lead Time: 2-3 working days approx.
Specifications
| Ethernet port |
|
Programming via web-interface |
|
8 x Analogue or Digital inputs |
|
8 x Relay (50VAC/30VDC max. 3A) |
|
DMX512-A (ANSI E1.11) port (opto-isolated, input or output) |
|
RS-232 port (in & out) |
|
Art-Net (in & out) |
|
sACN (in & out) |
|
TCP (in) |
|
USP & OSC (in & out) |
|
12-24 DC 500mA (PSU included) |
|
Power over Ethernet (class I) |
|
Kensington lock |
|
Desktop, DIN Rail or 19″ rack mount (optional adapter) |
|
Operating temperature -20°C to +50°C (-4°F to +122°F) |
|
Bundled with CueluxPro, vManager and Kiosc software |
|
Compliance CE, ROHS, UKCA, EAC, FCC, UL62368-1, CSA C22.2 62368-1:19 |
