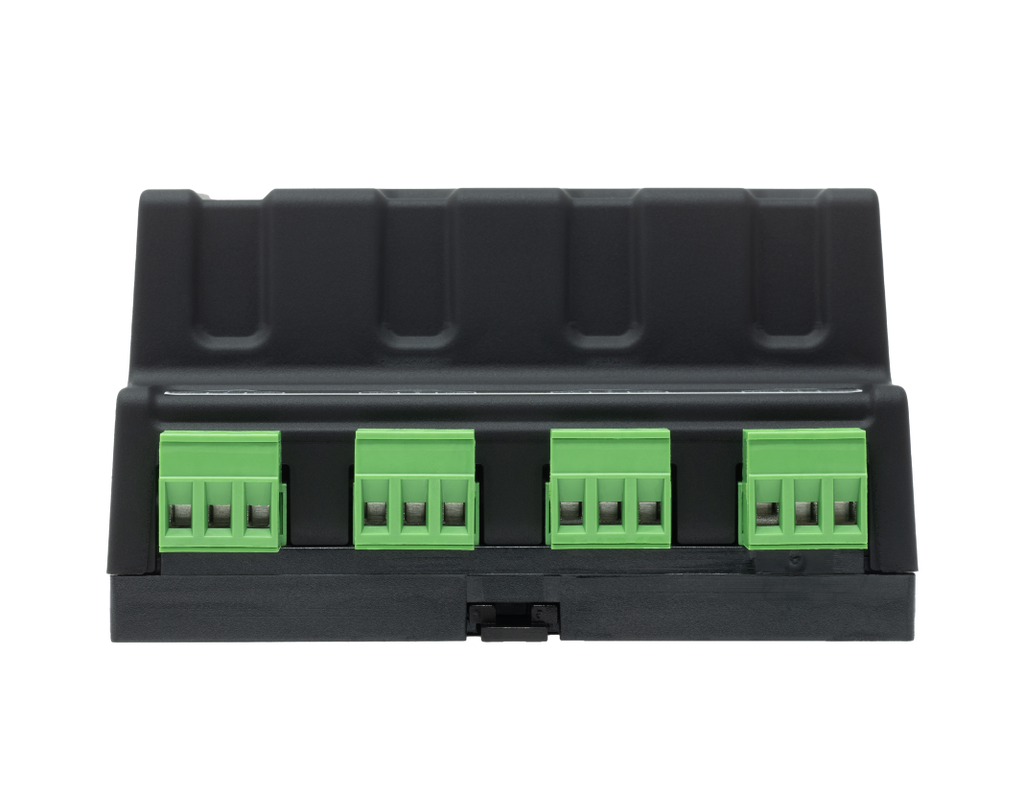

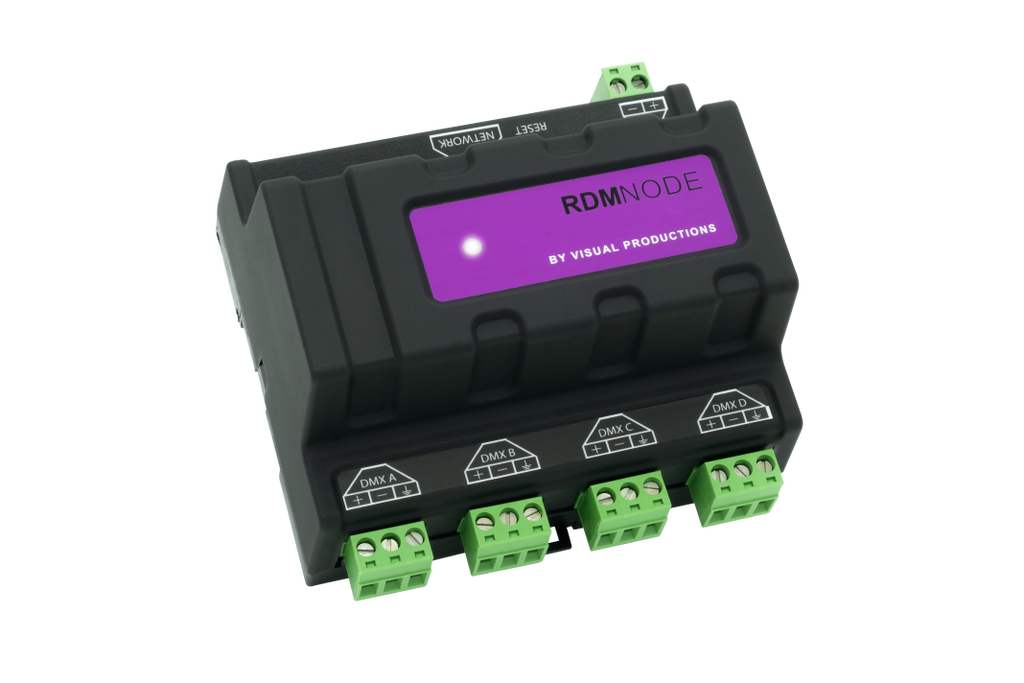

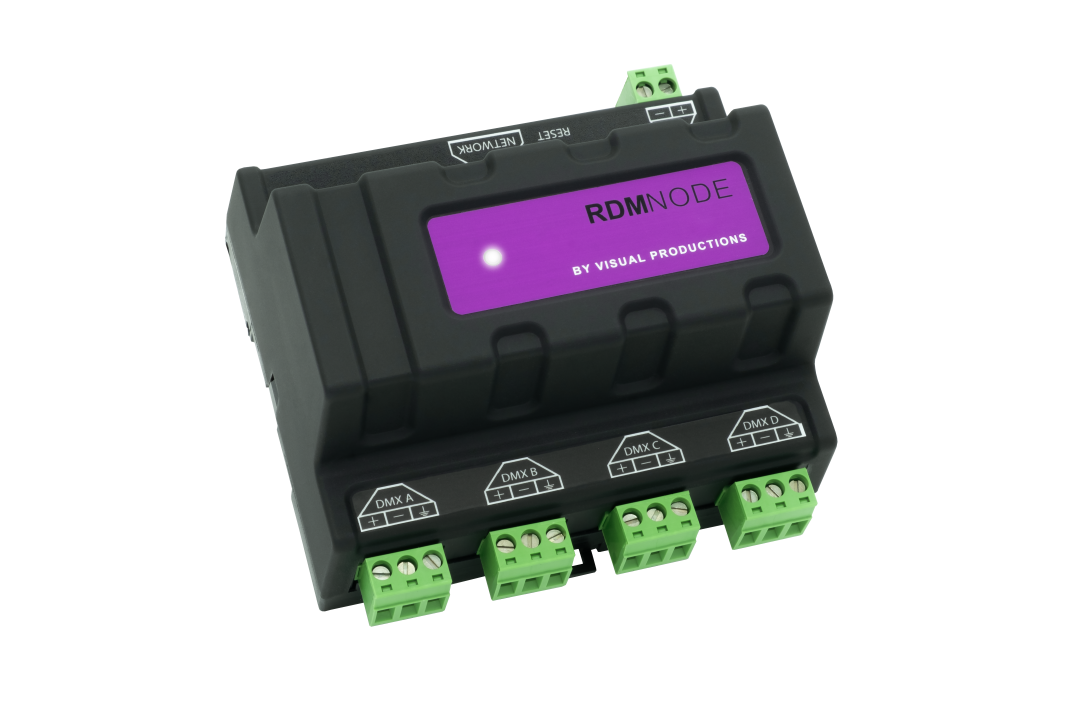

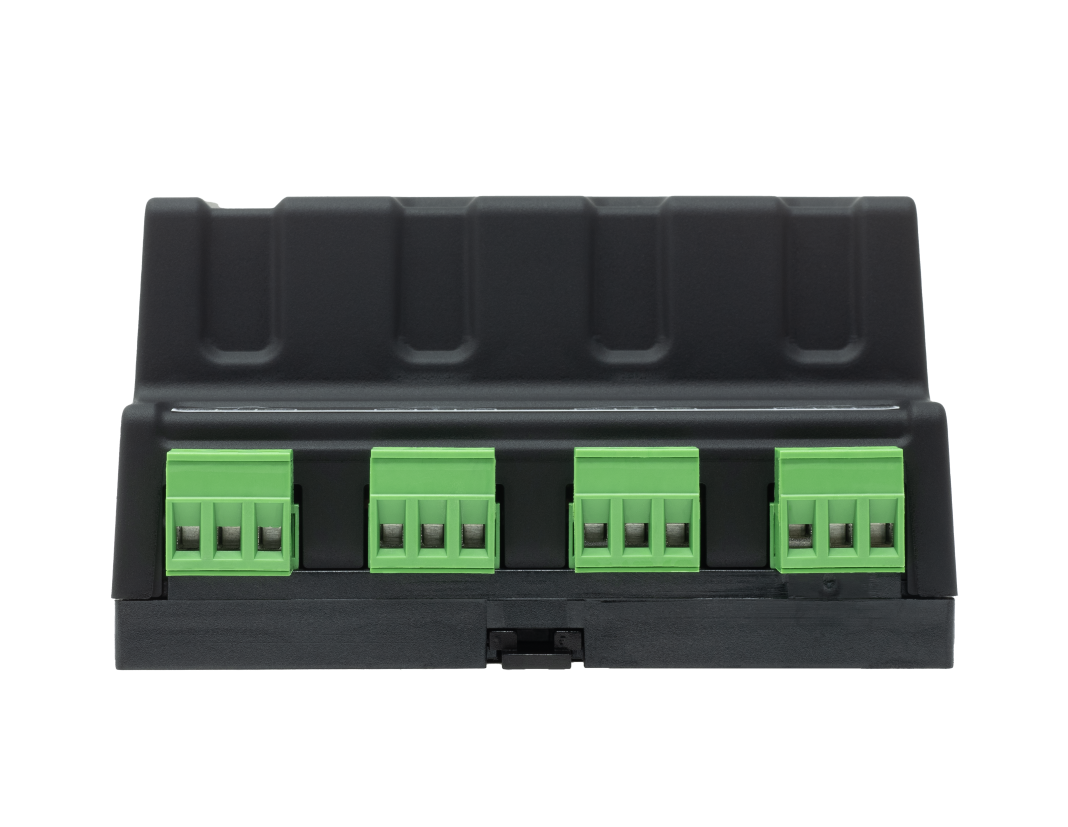

Visual Productions RdmNode
£580.00
4-port eDMX converter
The RdmNode is a 4-port eDMX node designed to seamlessly convert Art-Net and sACN into DMX-512 and vice versa. Its compact DIN Rail form factor makes it an excellent choice for system integration and architectural lighting projects.
Delivery Lead Time: 5-10 working days approx.
Specifications
|
Ethernet port |
|
Programming via web-interface |
|
4 x DMX512-A (ANSI E1.11) port (Opto-isolated, bi-directional) |
|
RDM over Art-Net |
|
Art-Net |
|
sACN |
|
Power consumption 9-24V DC 500mA |
|
Power over Ethernet (class I) |
|
Dimensions 105 x 86 x 60 mm (4.1 x 3.4 x 2.4 inches) |
|
Operating temperature -20°C to +50°C (-4°F to 122°F) |
|
Operating relative humidity 10% to 80% non-condensing |
| Compliance: CE, ROHS, UKCA |
